Stainless Steel Filter Holder

Short Description:

Stainless steel filter holder is constructed of stainless steel material, which is ready to-use units for laboratory research and Small scale process validation in the pharmaceutical industry.This filter has quick-install and thread connection modes.Inside and outside surface is electropol­ished finish,Sanitary grade.


Product Detail

Product Tags

Download



微信截图_20240131111248

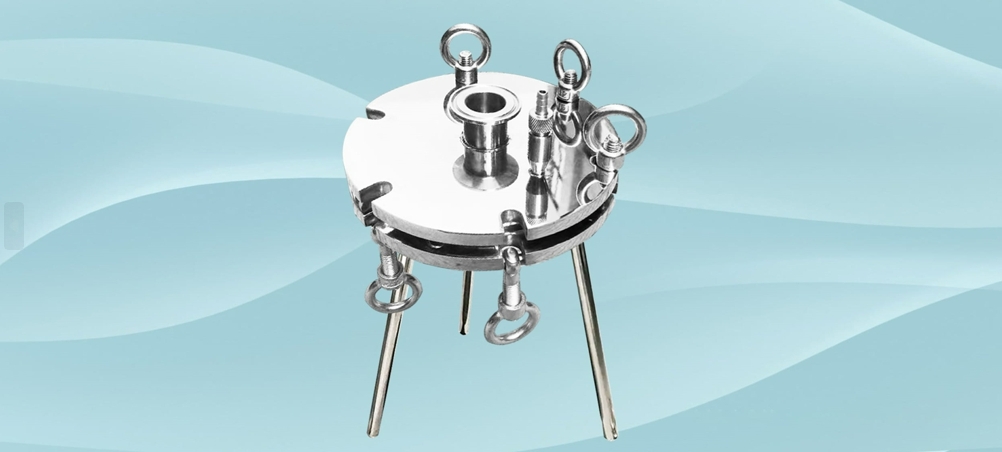

Great Wall™ Stainless Steel Filter Holder

Great Wall Stainless steel filter holder is constructed of stainless steel material, which is ready to-use units for laboratory research and Small scale process validation in the pharmaceutical industry.This filter has quick-install and thread connection modes.Inside and outside surface is electropolished finish,Sanitary grade.

Stainless Steel Filter Holder Applications

• Laboratory research
• Small scale process validation in the pharmaceutical industry

Stainless Steel Filter Holder Surface Finish

Finish Process Options:

Electropolished

Polish Quality:

Internal: Ra ≤ 0.4μm External: Ra ≤ 0.8μm

Filtration Area:

16.9cm²

Stainless Steel Filter Holder Connection

Inlet, Outlet:

Tri-clamp 1″

Port:

Inner bore, 4mm Connects with 8mm pipe

Materials

Shell Options:

316L Stainless Steel

Tri-clamp:

304

Seal Materials:

Silicone

Operating Conditions

Design Pressure Options:

0.4MPa (58psi)

Max. Operating Temperature:

121℃ (249.8°F)

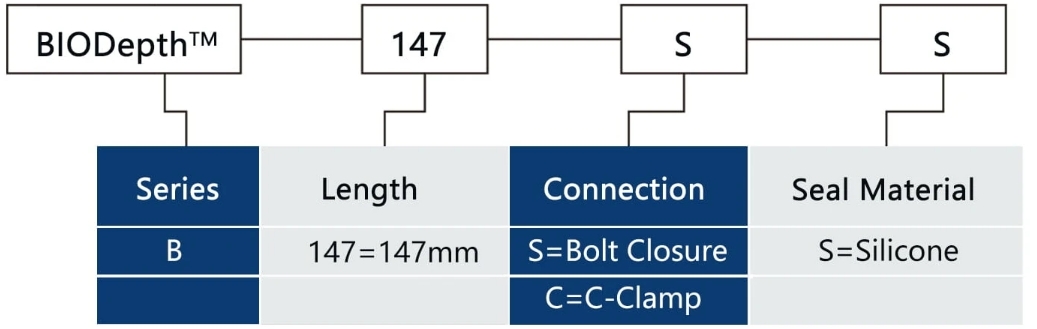

Ordering Information

微信截图_20240131111736



Contact us for more information, we will provide you better products and best service .
