Short Lead Time for Cheese Cloth – Nylon filter cloth for filtering fruit juice – Great Wall Detail:
Great Wall‘s Nylon filter mesh is mainly made of P.P fiber textile molding. Nylon filter mesh is acid and alkali resistant and has good corrosion resistance. Nylon filter mesh fabric is a material that has low resistance. Nylon filter mesh can be repeatedly cleaned, and is extremely economical. It is widely used in filtration (water, flour, juices., soybean milk, oil, cheese, air purification, power coating filtering in industry etc. ), printing and dyeing, the industries of petroleum, chemical, metallurgy, cement, environmental dusting etc.
|
Product Name
|
Nylon filter cloth
|
|
Material
|
Food grade nylon monofilament
|
|
Color
|
white, black or customized
|
|
Weave type
|
plain woven, twill woven, dutch woven
|
|
Common Width
|
100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized
|
|
Roll length
|
30-100 mester or customized
|
|
Mesh Count/cm
|
4-240T
|
|
Mesh Count/inch
|
10-600 mesh/inch
|
|
Thread diameter
|
35-550 micron
|
|
Mesh Opening
|
5-2000 um
|
|
Thickness
|
53-1100um filter mesh
|
|
Certificate
|
ISO19001, ROHS, LFGB, Food grade test
|
|
Physical Characteristics
|
1.Material : manufactured by 100% monofilament nylon or polyester yarn
|
|
2.Opening :the mesh with great precision exact and regular square holes
|
|
|
3.Dimensional :very good dimensional stability
|
|
|
Chemical properties
|
1.Temperature : working temperature under 200℃
|
|
2.Chemicals: no unwanted chemicals, no any chemicals treatment in the production process
|
|
|
3.Safe Grade : food grade
|

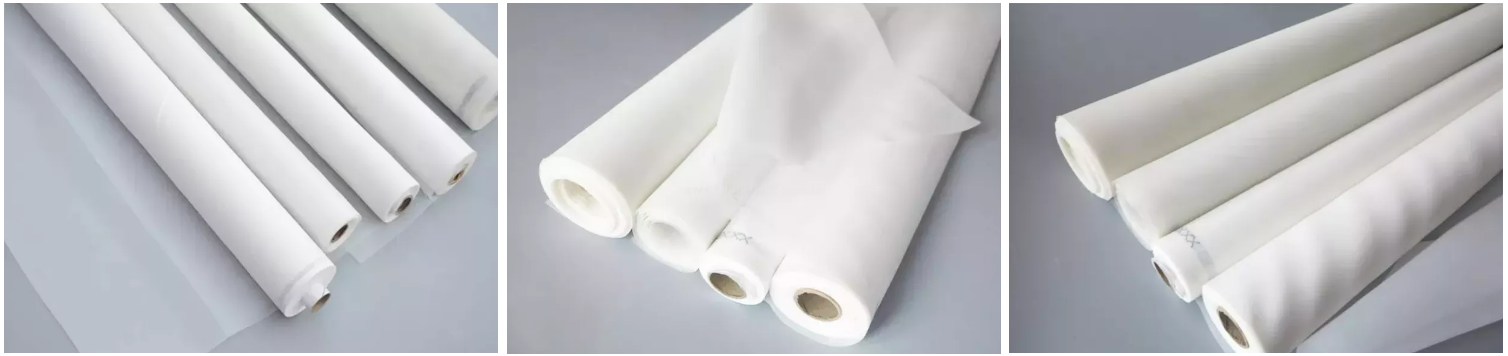

Advantages of nylon mesh fabric
1. Nylon mesh has great precision and regular square holes.
2. Nylon mesh has a very smooth surface, so the filtered particles will easily separate from it.
3.Nylon mesh has very good dimensional stability and no chemical treatment in the production process
4.Nylon mesh quality is food grade and very safe.
|
TYPE
|
MESH OPENING (μm)
|
MESH COUNT (mesh/inch)
|
THEAD DIAMETER (μm)
|
OPEN AREA (%)
|
THICKNESS (μm)
|
|
4-600
|
1900
|
10
|
600
|
60
|
1200
|
|
5-500
|
1500
|
13
|
500
|
55
|
1000
|
|
6-400
|
1267
|
15
|
400
|
57
|
800
|
|
7-350
|
1079
|
18
|
350
|
56
|
700
|
|
8-350
|
900
|
20
|
350
|
51
|
700
|
|
9-300
|
811
|
23
|
300
|
58
|
570
|
|
9-250
|
861
|
23
|
250
|
59
|
500
|
|
10-250
|
750
|
25
|
250
|
55
|
500
|
|
10-300
|
700
|
25
|
300
|
48
|
600
|
|
12-300
|
533
|
30
|
300
|
40
|
600
|
|
12-250
|
583
|
30
|
250
|
48
|
500
|
|
14-300
|
414
|
36
|
200
|
33
|
510
|
|
16-200
|
425
|
41
|
200
|
45
|
340
|
|
16-220
|
405
|
41
|
220
|
40
|
385
|
|
16-250
|
375
|
41
|
250
|
35
|
425
|
|
20-150
|
350
|
51
|
150
|
46
|
255
|
|
20-200
|
300
|
51
|
200
|
35
|
340
|
|
24-120
|
297
|
61
|
120
|
51
|
235
|
|
24-150
|
267
|
61
|
150
|
40
|
255
|
|
28-120
|
237
|
71
|
120
|
44
|
210
|
|
30-120
|
213
|
76
|
120
|
40
|
204
|
|
32-100
|
213
|
81
|
100
|
45
|
170
|
|
32-120
|
193
|
81
|
120
|
41
|
205
|
|
34-100
|
194
|
86
|
100
|
44
|
180
|
|
36-100
|
178
|
91
|
100
|
40
|
170
|
|
40-100
|
150
|
102
|
100
|
35
|
170
|
|
56-60
|
119
|
142
|
60
|
43
|
102
|
|
64-60
|
100
|
163
|
60
|
37
|
102
|
|
72-50
|
89
|
183
|
50
|
40
|
85
|
|
80-50
|
75
|
203
|
50
|
35
|
85
|
|
90-43
|
68
|
229
|
43
|
37
|
85
|
|
100-43
|
57
|
254
|
43
|
31
|
80
|
|
110-43
|
48
|
279
|
43
|
25
|
76
|
|
120-43
|
40
|
305
|
43
|
21
|
80
|
|
120-38
|
45
|
305
|
38
|
25
|
65
|
|
130-35
|
42
|
330
|
35
|
25
|
60
|

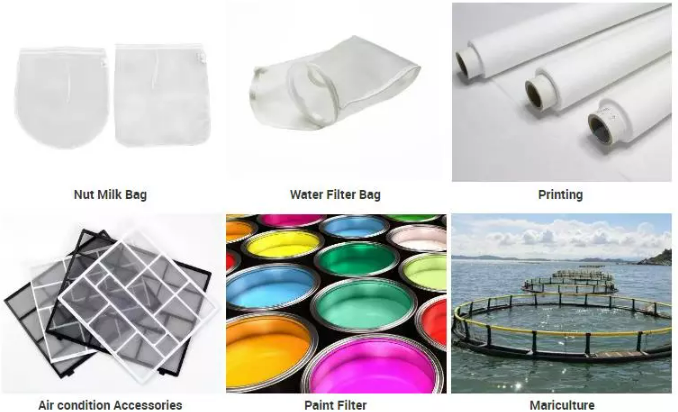

Application of Nylon monofilament filtering mesh fabric cloth :
1.Air conditioning products equipment, air fresheners and air purification treatment equipment and engineering at the beginning of the dust filter is used
2.Office building, meeting room, hospital, shopping mall, stadium, airport etc. large civil building ventilation system; General plant ventilation and air conditioning system; clean room ventilation and air conditioning system in the primary filter.
3. Food industry, such as coffee, tea, juice, wine, flour etc
Product detail pictures:
