Great Wall Filtration, a leading name in the filtration industry, has been providing exceptional solutions for nearly four decades. The company has always been at the forefront of innovation, with a strong focus on technological advancements and product development.

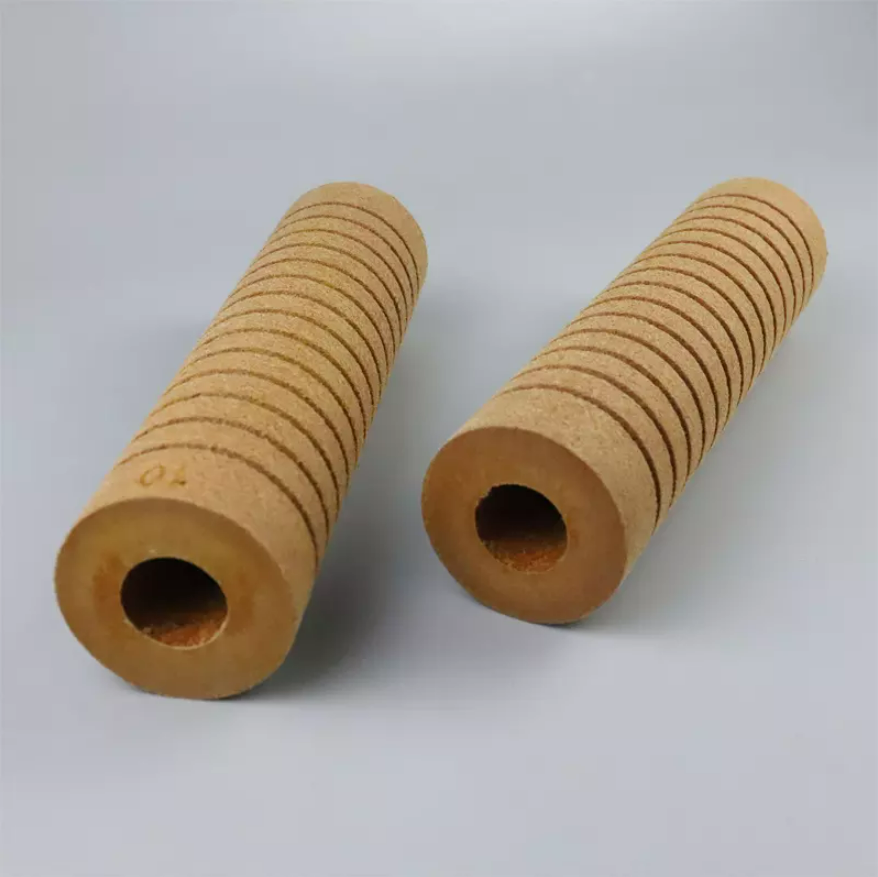

One of the latest products to come out of the Great Wall Filtration factory is the phenolic resin filter cartridge, which has been met with much success in the industry. With a unique fiber structure, the filter cartridge provides a compact design, uniform micropore size, and high porosity. The result is a filtration system that is highly effective in removing particles, with an efficiency rating of up to 99.9%.
Phenolic Resin Filter Cartridge Technical Data
|
Material
|
Phenolic Resin + Acrylic Fiber
|
|
Max . temperature
|
135°C
|
|
Operating pressure
|
0.45Mpa
|
|
Solvent resistance
|
Expansion rate <2% (ketones, ethers, phenols, alcohols, phenols, etc.)
|
|
Anti-shrinkage
|
No shrinkage,depression
|
|
I.D.
|
29mm
|
|
O.D.
|
65mm
|
|
Length
|
9.75 to 40inch
|
|
Micron rating
|
5,10,25,50,75,100,125,150um
|
Ordering Information
|
Model
|
Micron
|
Length
|
Adapter
|
Sealing Ring
|
|
RRB
|
5 = 5um
|
248 = 9.75inch
|
DOE = Double Open End
|
N = None
|
|
10 = 10um
|
254 =10inch
|
S2F=222/Fin
|
E = EPDM
|
|
|
25 = 25um
|
496 = 19.5inch
|
|||
|
50=50um
|
508 =20inch
|
|||
|
75 = 75um
|
744 = 29.25inch
|
|||
|
100=100um
|
762 =30inch
|
|||
|
125 = 125um
|
992 = 39inch
|
|||
|
150 = 150um
|
1016 =40inch
|
Great Wall Filtration’s success is based on a combination of factors, including its ability to innovate, its technical expertise, and its reputation for delivering high-quality products. With a commitment to customer satisfaction and a focus on meeting the specific needs of each client, Great Wall Filtration has built a loyal following in the filtration industry.
In addition to the phenolic resin filter cartridge, Great Wall Filtration offers a wide range of filtration products, including air filters, water filters, and oil filters. With a strong supply chain and an extensive distribution network, the company is able to provide fast and reliable delivery of its products to customers around the world.
For 40 years, Great Wall Filtration has been a trusted name in the filtration industry, and the introduction of the phenolic resin filter cartridge is further proof of the company’s commitment to innovation and excellence. With a focus on quality and a dedication to meeting the needs of its customers, Great Wall Filtration is poised to continue leading the way in the filtration industry for years to come.
Contact us for more information, we will provide you better products and best service.
Post time: Apr-17-2023
