Factory Cheap Hot Paint Filter Bag - Liquid filter bag industrial socks filter bag – Great Wall
Factory Cheap Hot Paint Filter Bag - Liquid filter bag industrial socks filter bag – Great Wall Detail:
Liquid filter bag
1 It is produced by high-speed industrial sewing machines / a sewing machine / the sewing machine without silicone oil cool , which will not cause the problem of silicone oils / oiled pollution .
2 . The side leakage caused by the improvement in / to / on the suture at the mouth of the bag has no high protrusion and there is no needle eye , which leads to the phenomenon of side leakage .
3 . The labels on the filter bag of the product specifications and models are all selected in a way that is easy to remove , to prevent the filter bag from contaminating the filtrate with labels and inks during use .
4 . The filtration precision ranges from 0.5 microns to 300 microns , and the materials are divided into polyester and polypropylene filter bags .

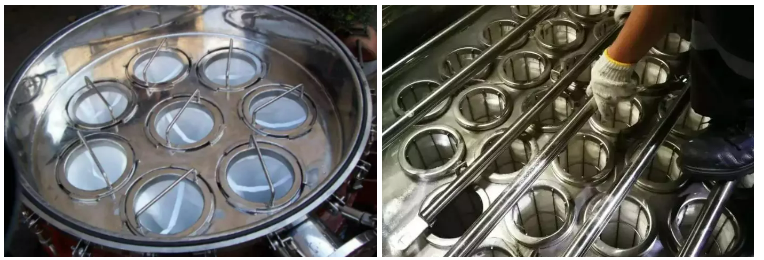

5 . Argon arc welding technology of stainless steel and galvanized steel rings / rang . The diameter error is only less than 0.5mm , and the horizontal error are less than 0.2mm . The filter bag made of this steel ring can be installed in the equipment to improve the sealing degree and reduce the probability of side leakage .
Product Paramenters
|
Product Name
|
Liquid Filter Bags |
||
|
Material Available
|
Nylon (NMO)
|
Polyester (PE)
|
Polypropylene (PP)
|
|
Maximum Operating Temperature
|
80-100° C
|
120-130° C
|
80-100° C
|
|
Micron Rating (um)
|
25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um
|
0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300
|
0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300
|
|

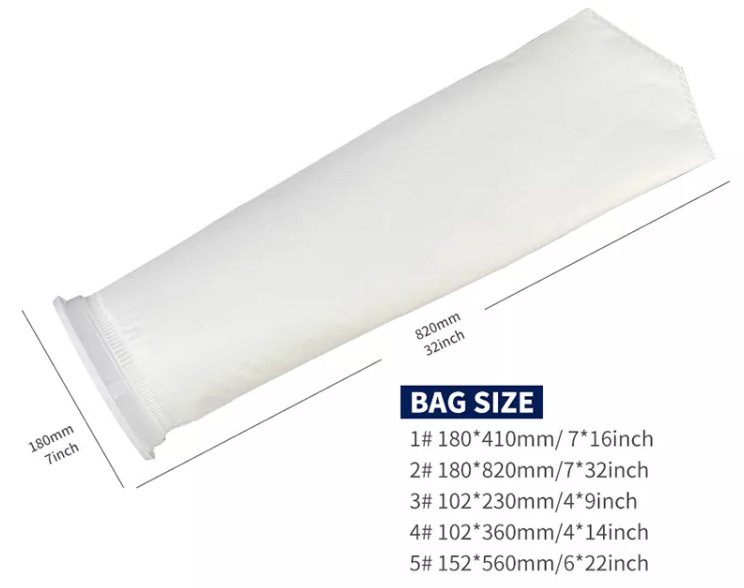

Size
|
1 #: 7″” x 16″” (17.78 cm x 40.64 cm)
|
||
| 2 #: 7″” x 32″” (17.78 cm x 81.28 cm) | |||
| 3 #: 4″” x 8.25″” (10.16 cm x 20.96 cm) | |||
| 4 #: 4″” x 14″” (10.16 cm x 35.56 cm) | |||
| 5 #: 6 “” x 22″” (15.24 cm x 55.88 cm) | |||
| Customized size | |||
|
Filter Bag Area(m²) /Filter Bag Volume (Liter)
|
1#: 0.19 m² / 7.9 Liter
|
||
| 2#: 0.41 m² / 17.3 Liter | |||
| 3#: 0.05 m² / 1.4 Liter | |||
| 4#: 0.09 m² / 2.5 Liter | |||
| 5#: 0.22 m² / 8.1 Liter | |||
|

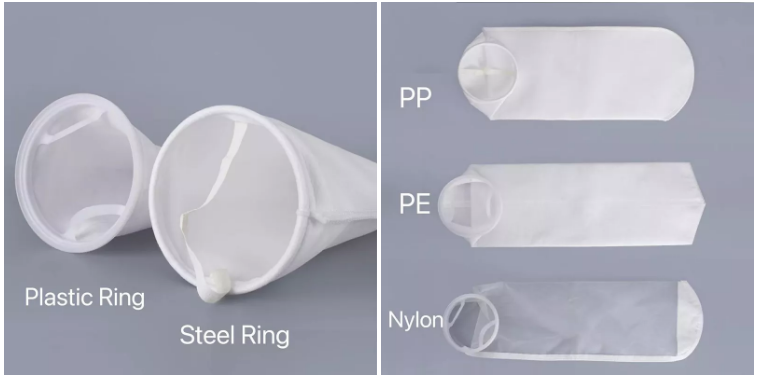

Collar Ring
|
Polypropylene ring/Polyester ring/Galvanized steel ring/
|
||
| Stainless steel ring/Rope | |||
|
Remarks
|
OEM: support
|
||
| Customized item: support. | |||
|
Fiber Material
|
Polyester (PE)
|
Nylon (NMO)
|
Polypropylene (PP)
|
|
Abrasion Resistance
|
Very Good
|
Excellent
|
Very Good
|
|
Weakly Acid
|
Very Good
|
General
|
Excellent
|
|
Strongly Acid
|
Good
|
Poor
|
Excellent
|
|
Weakly Alkali
|
Good
|
Excellent
|
Excellent
|
|
Strongly Alkali
|
Poor
|
Excellent
|
Excellent
|
|
Solvent
|
Good
|
Good
|
General
|
Product Usage
Cartridge filters are suitable for liquid precision filtering to remove tiny impurities and bacterium, and are widely used in the following industries.
* Oil & gas. Produced water filtration; injection water filtration; completion fluid filtration; natural gas extraction; amine sweetening; desiccant dehydration;
* Metallurgy. Hydraulic and lubrication system filtration;
* Machining. Machine tool coolant circulating filtration;
* Food & beverage. Fermented beer filtration, beer final filtration, wine filtration, bottled water filtration, soft drink filtration, juice filtration, dairy filtration;
* Water treatment. household drinking water filtration, domestic wastewater filtration;
* Pharmaceuticals. Ultra-pure water filtration
* Marine filtration system. Seawater desalination.
